SPECIFICATIONS

Brand Name: U'King

Certification: CE,RoHS

High-concerned chemical: None

Installation Method: self-contained

Is Batteries Included: No

Is Bulbs Included: Yes

Is Smart Device: no

IsStageLightingEffect'sEquipmentorAccessories: Yes

Item Type: Moving head light

Luminous Flux: 2000-82000

Nominal Voltage: 220V

Occasion: Professional Stage & DJ

Origin: Mainland China

Power: 295w

Power (W): 500W

Power Source: DC

Style: DMX Stage Light

Voltage: 100V-240V

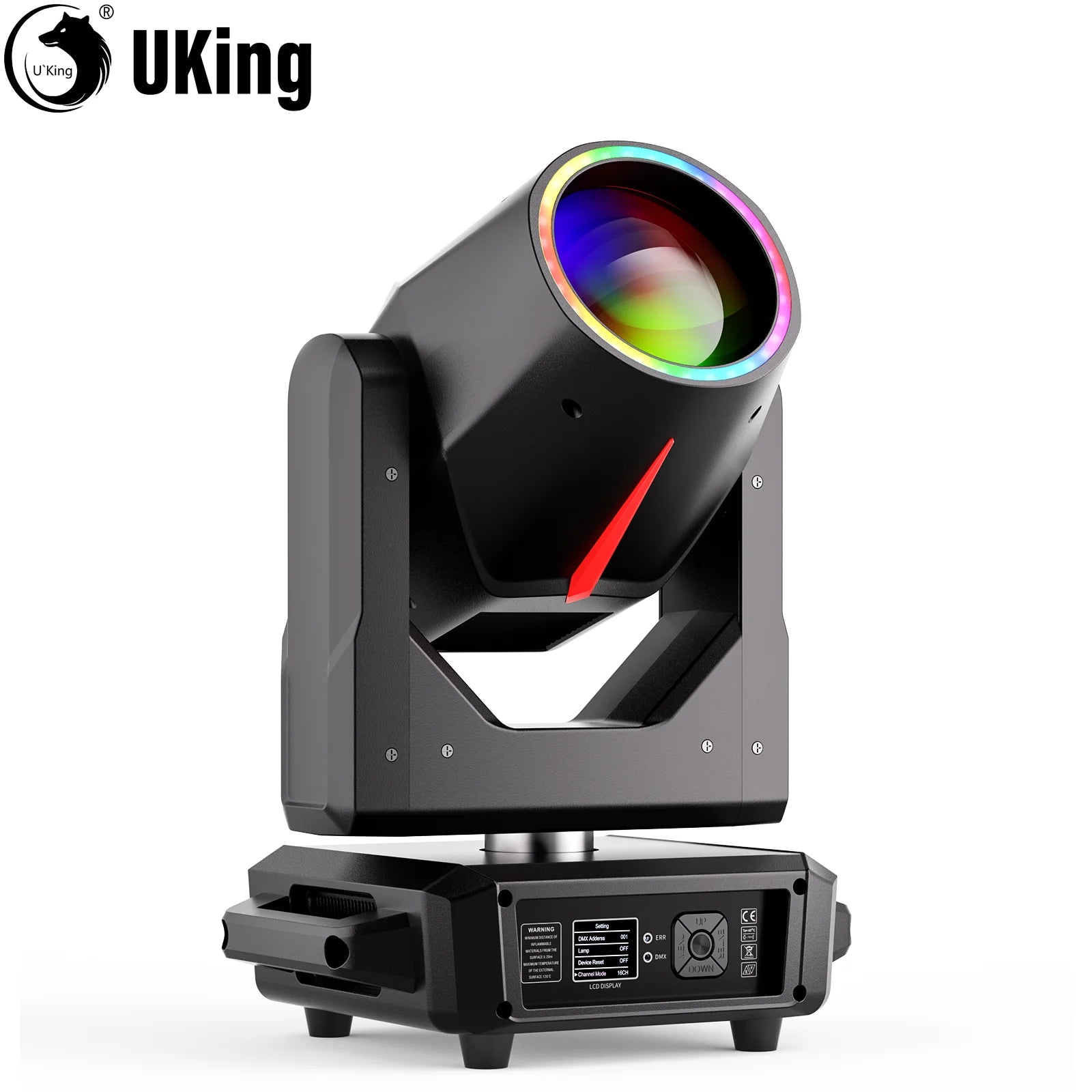

U'King 295W 14R HID Beam Moving Head Light 8/18 Prism Gobo Zoom Rainbow Effect Stage Light DMX512 DJ Lights For Xmas Party KTV

Specification

Input voltage: AC100V-240V 50/60Hz

Rated (power) power: 500W

Actual total power of the whole machine: 380W

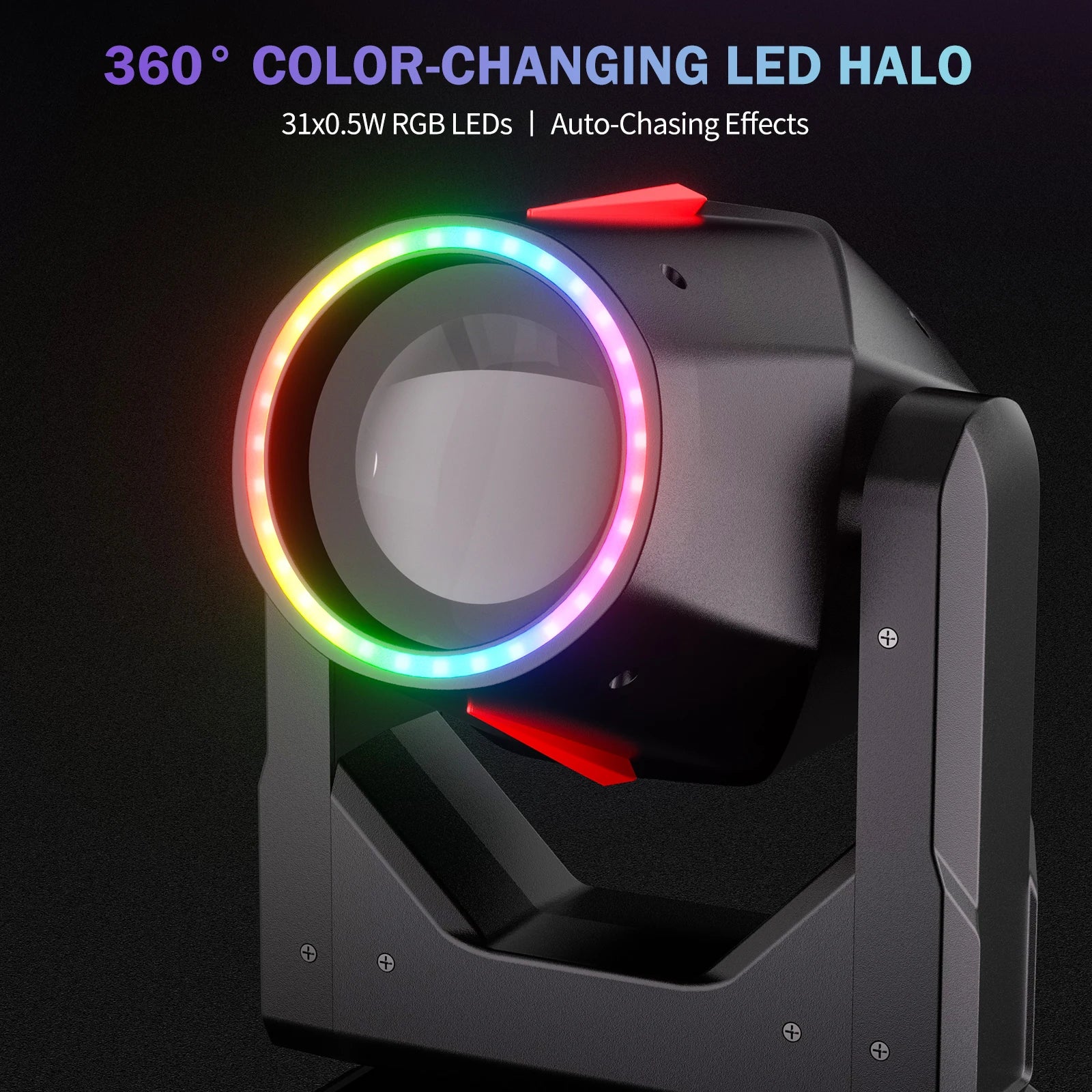

Light source: 295W HID + 31 0.5W (RGB) LEDs

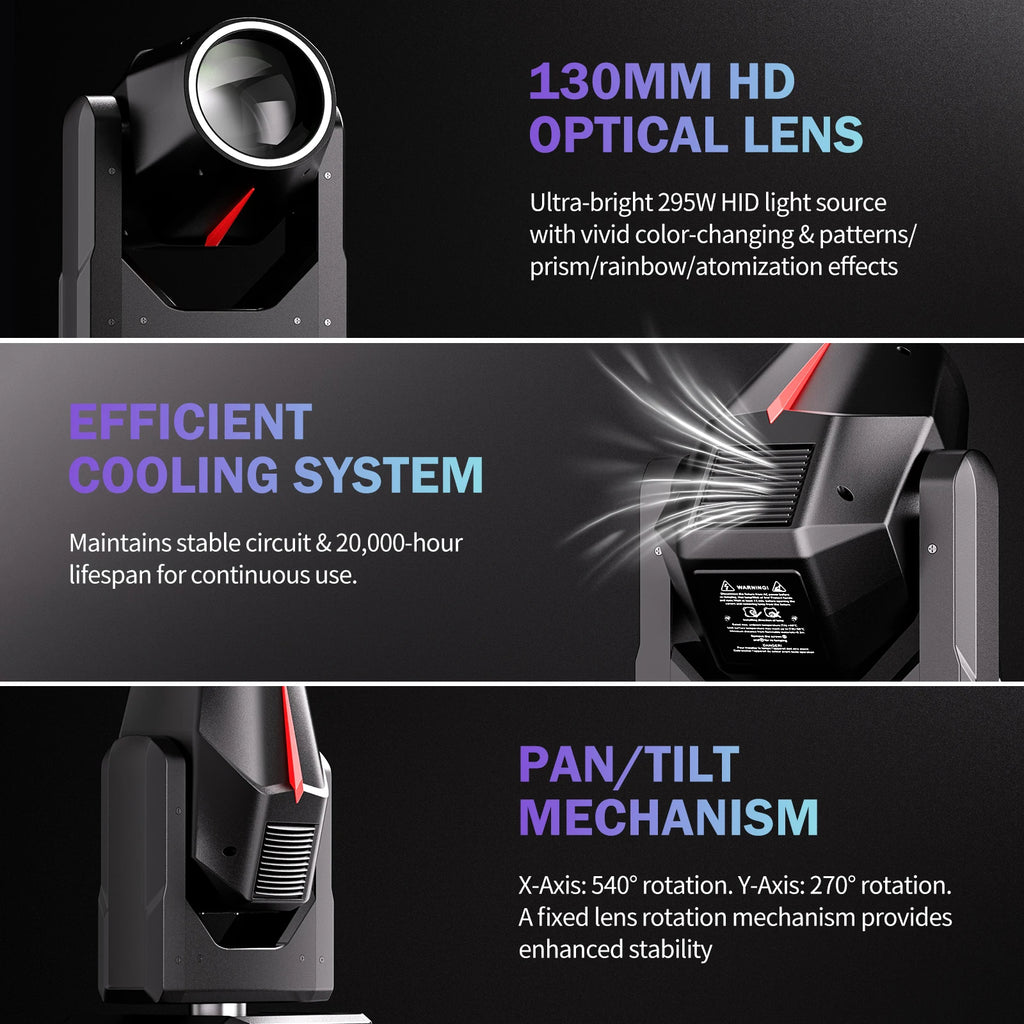

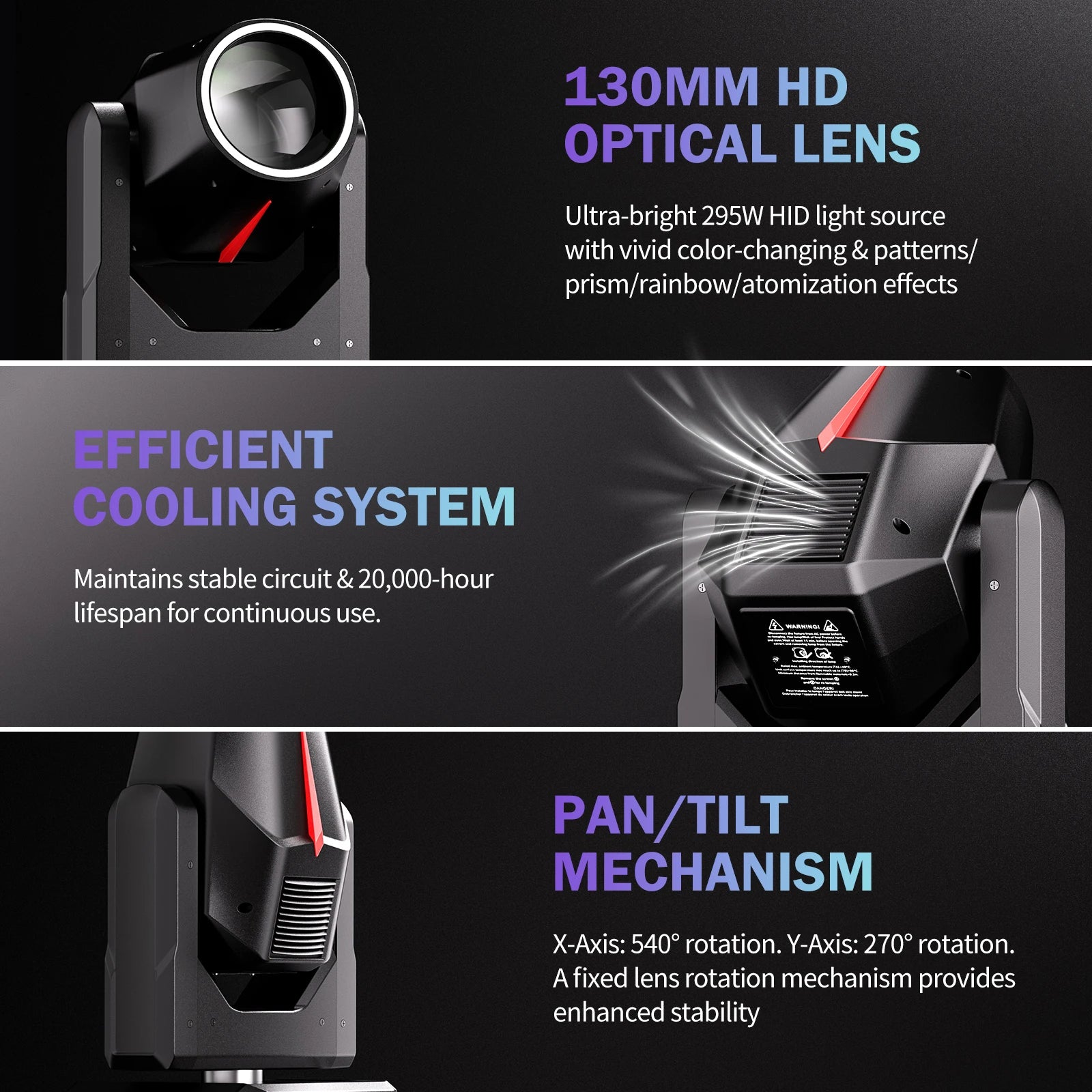

Optical aperture: 130mm

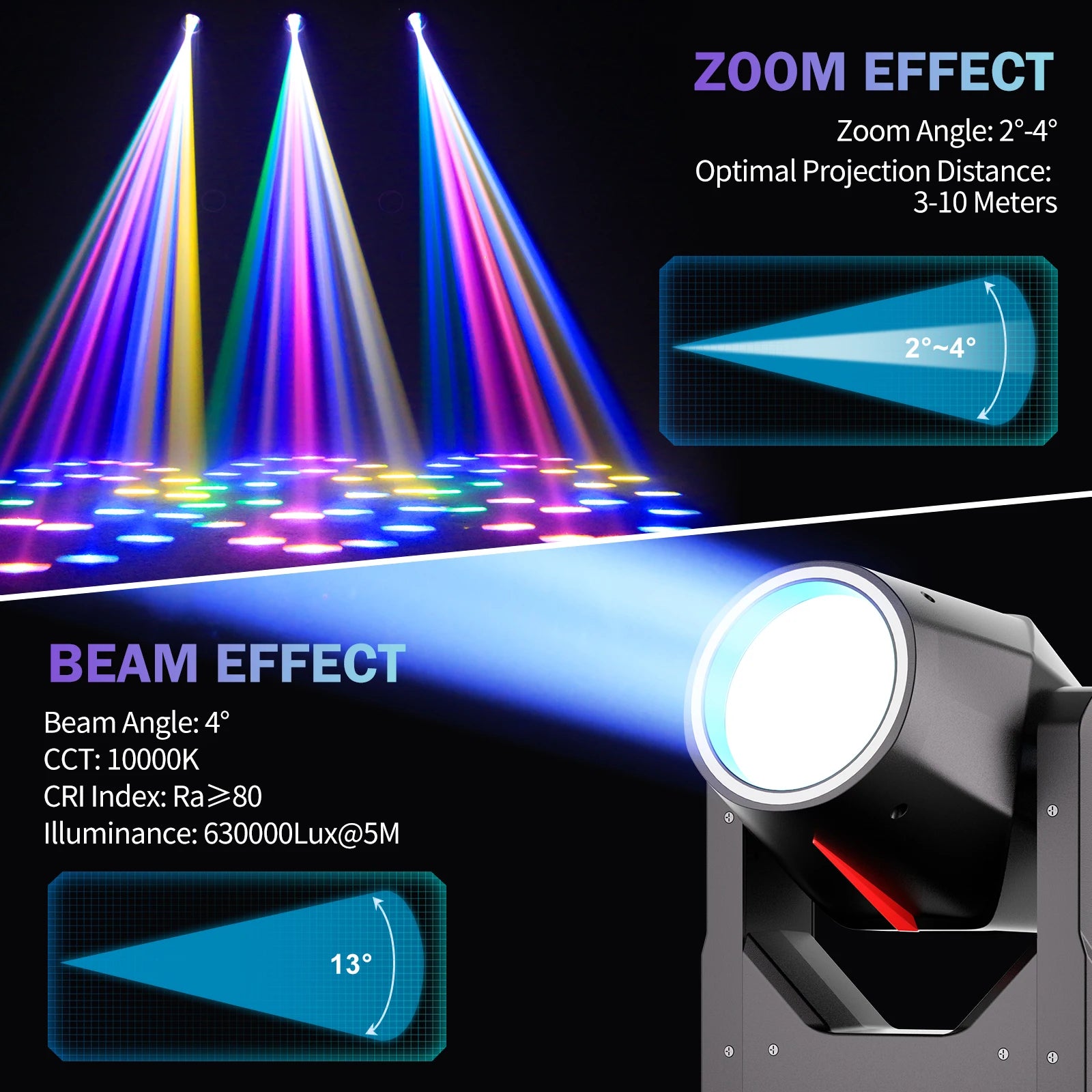

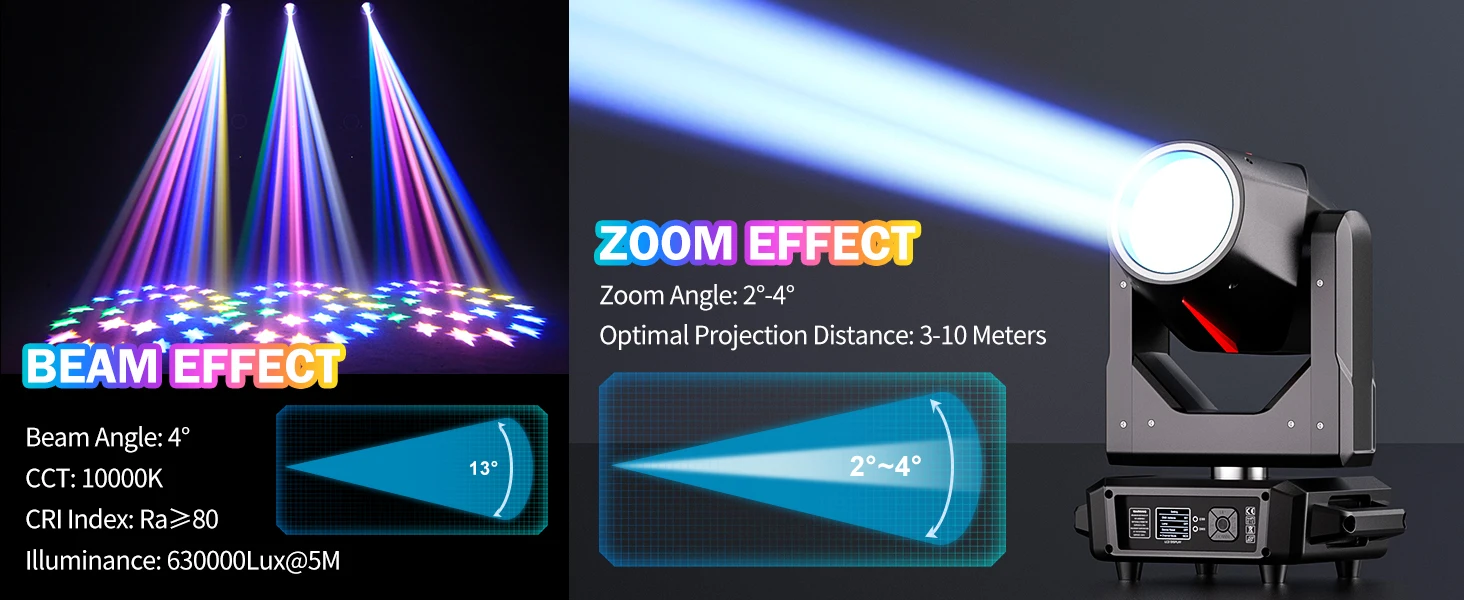

Light output angle: 4°

Color temperature: 10000K

CRI index: Ra≥80

Optimal projection distance: 3-10M

Illuminance: 630000Lux@5M

Average life of HID: 2000h

Flash: 1-20Hz

Color disk: 14+1 color disk, forward and reverse water flow

Fixed pattern disk: 13+1 pattern disk, forward and reverse water flow

Colorful atomization: rainbow + atomization

Prism: 8/18-prism, 0-360°rotatable

Focus: electronic focus

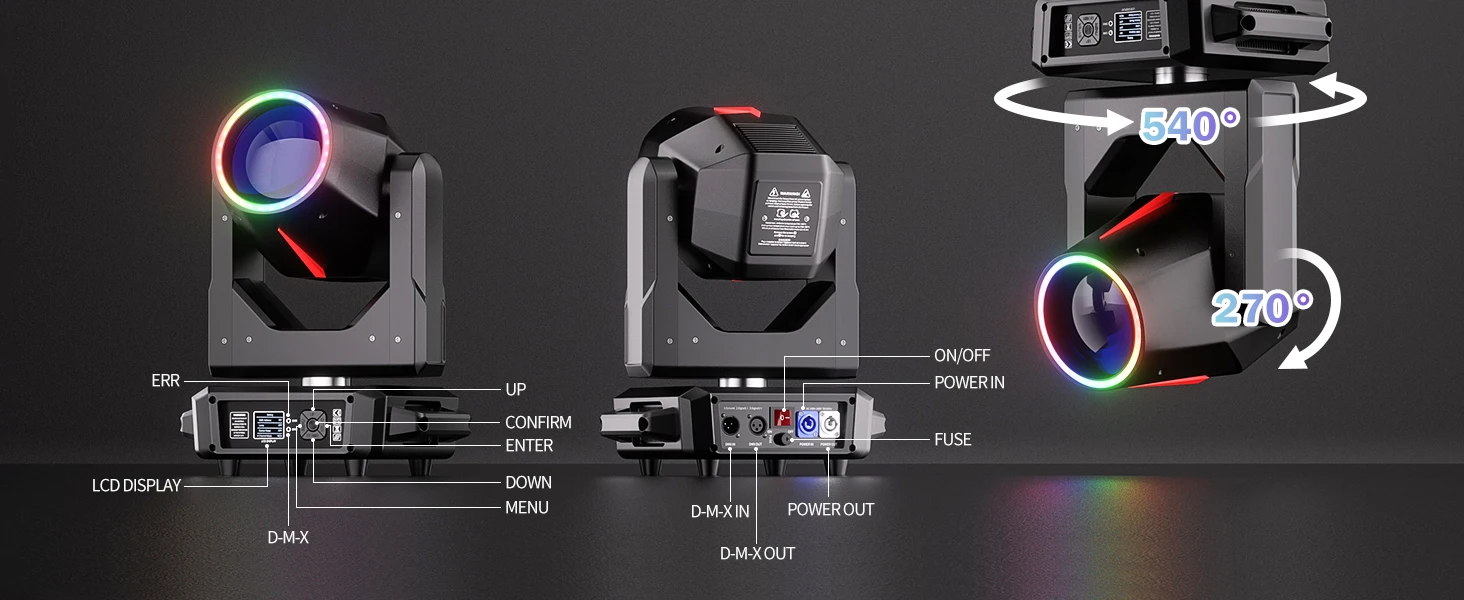

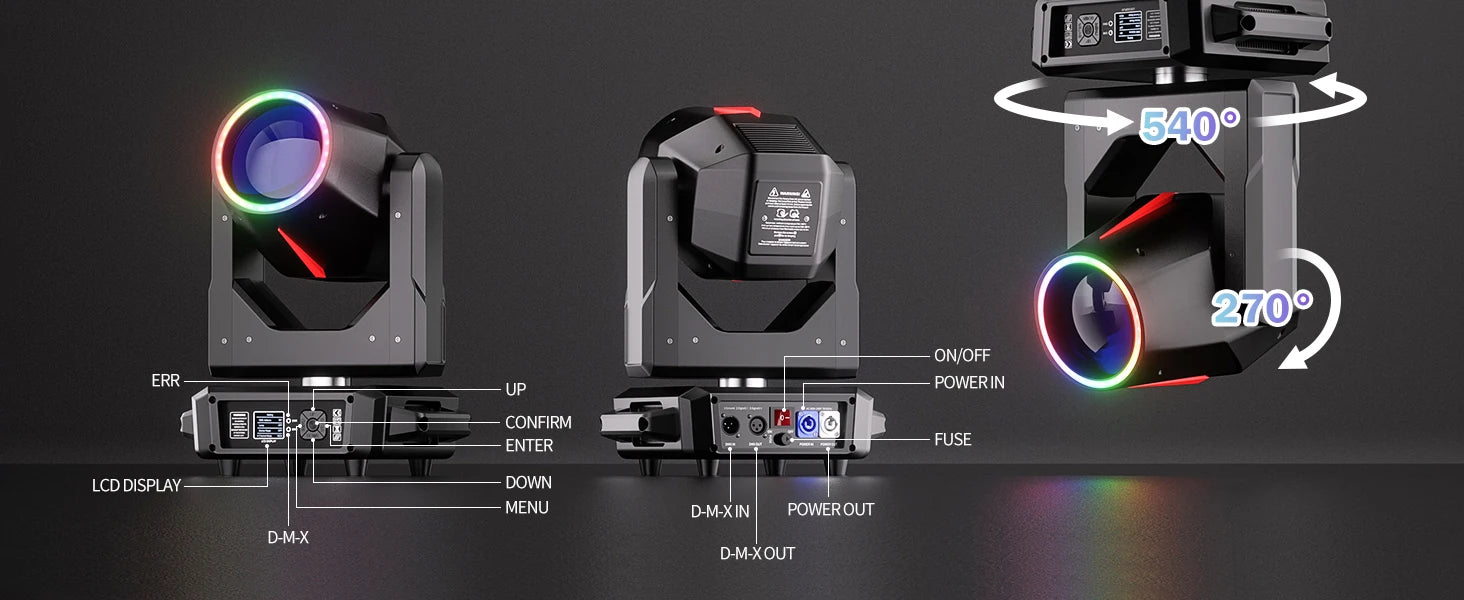

X-axis: 540° Fine-tuning accuracy: 1.2°

Y-axis: 270° Fine-tuning accuracy: 1.2°

Operation mode: automatic, voice control, master-slave, DMX

Control channel: 16/22CH

Protocol: standard DMX512 protocol, RDM protocol

Data connection: three-core XLR input/output

Display: LCD display

Protection level: IP20

Working environment: -20℃-40℃

Material：Sheet metal structure/nylon shell

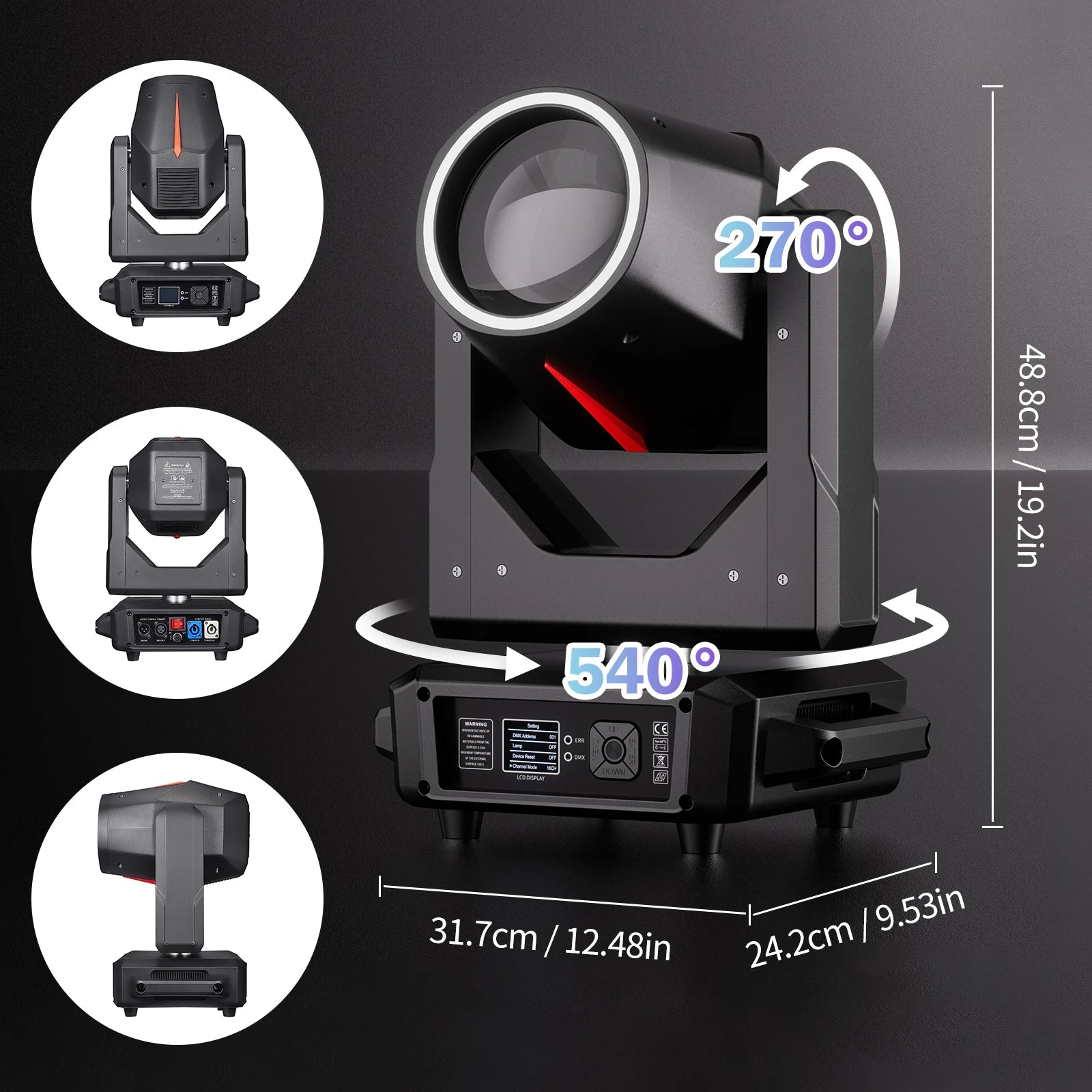

Product size：31.7*24.2*48.8cm/12.48*9.53*19.2in

Net weight：11.25kg/24.8lb

Features

1. Ultra-Bright Long-Throw Precision:

Dominates large stages with a powerful 295W HID (10,000K) + 31x RGB LED halo, delivering 630,000 Lux at 5m. Features a 4° ultra-narrow beam and electronic focus (3-10m) for pinpoint long-distance lighting accuracy.

2. Dynamic Multi-Layer Effects Engine:

Create complex shows effortlessly with a 14+1 color wheel, 13+1 gobo wheel, 8+18 rotating prism, plus RGB halo color/gradient effects. Add depth with rainbow, frost, and adjustable 1-20Hz strobe.

3. Professional Control & Wide Motion:

Features 540° pan / 270° tilt (1.2° micro-adjust) for massive coverage. Integrates seamlessly via DMX16/22 (with RDM), Auto, Sound, or Master/Slave modes using robust 3-pin XLR and LCD display.

4. Reliable Performance for Demanding Use:

Built tough for touring: operates on 100-240V AC, withstands -20°C to 40°C (IP20 rated), and boasts an extended 2000-hour HID lifespan – perfect for fixed installs or rigorous mobile events.

5. Compact & Road-Ready Design:

Engineered for easy deployment: a lightweight 11.25kg body (317x242x488mm) ensures simple rigging and transport, making it ideal for theatre beams, club trusses, and mobile setups.

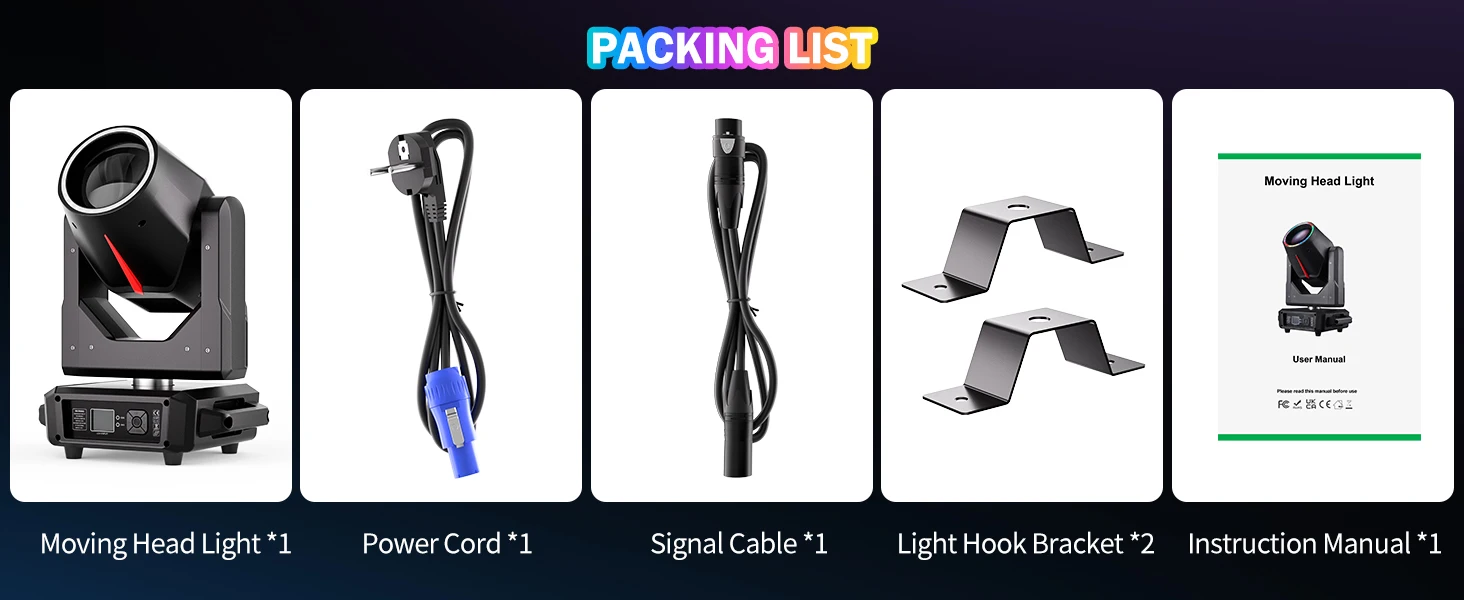

Packing list：

Moving Head Light *1/2

Power Cord *1/2

Signal Cable *1/2

Light Hook Bracket *2/4

Instruction Manual *1/2
